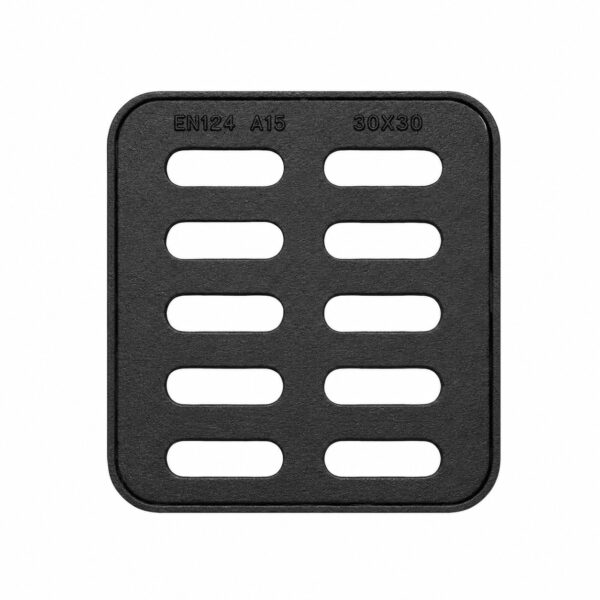

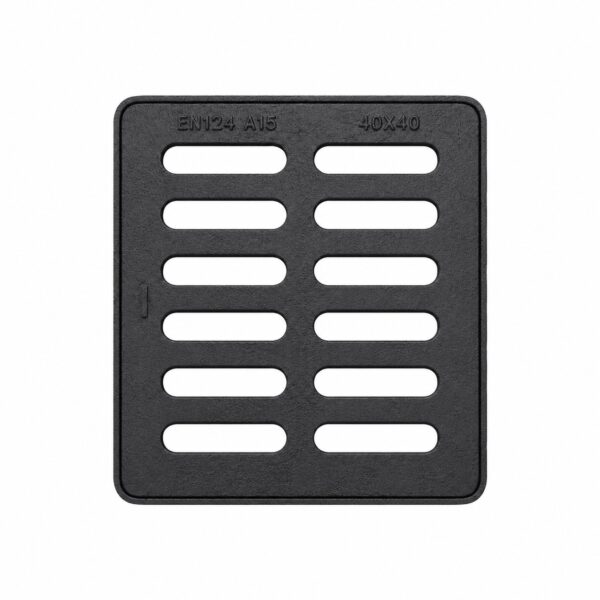

Gully Grates with frame made from Grey Iron
Gully Grates with frame
Α/Α | External Dimensions cm | Internal Dimensions cm | Height cm | Weight ±5% kg |
---|---|---|---|---|
1 | 28Χ28 | 20Χ20 | 3,5 | 9 |
2 | 38Χ38 | 30Χ30 | 4 | 20 |
3 | 50Χ50 | 40Χ40 | 8,5 | 80 |
4 | 49Χ59 | 40Χ50 | 7 | 85 |
5 | 57Χ67 | 43Χ53 | 10 | 150 |
6 | 68Χ68 | 50Χ50 | 10 | 190 |
7 | 68Χ68 | 55Χ55 | 6,5 | 110 |
8 | 68Χ73 | 50Χ60 | 9,5 | 180 |
9 | 70X86 | 55Χ70 | 10 | 240 |
10 | 60Χ92 | 45Χ77 | 9 | 185-195 |
11 | 60Χ98 | 45Χ85 | 8,5-10 | 200-220 |
12 | 76Χ76 | 62Χ62 | 8 | 200 |
13 | 43Χ66 | 33Χ55 | 7,5 | 70 |
14 | 36Χ100 | 23Χ86 | 8 | 120 |
15 | 31Χ83 | 18Χ66 | 8 | 120 |
